USB<>TTL<> RS232


SKU: GRO049 Category:

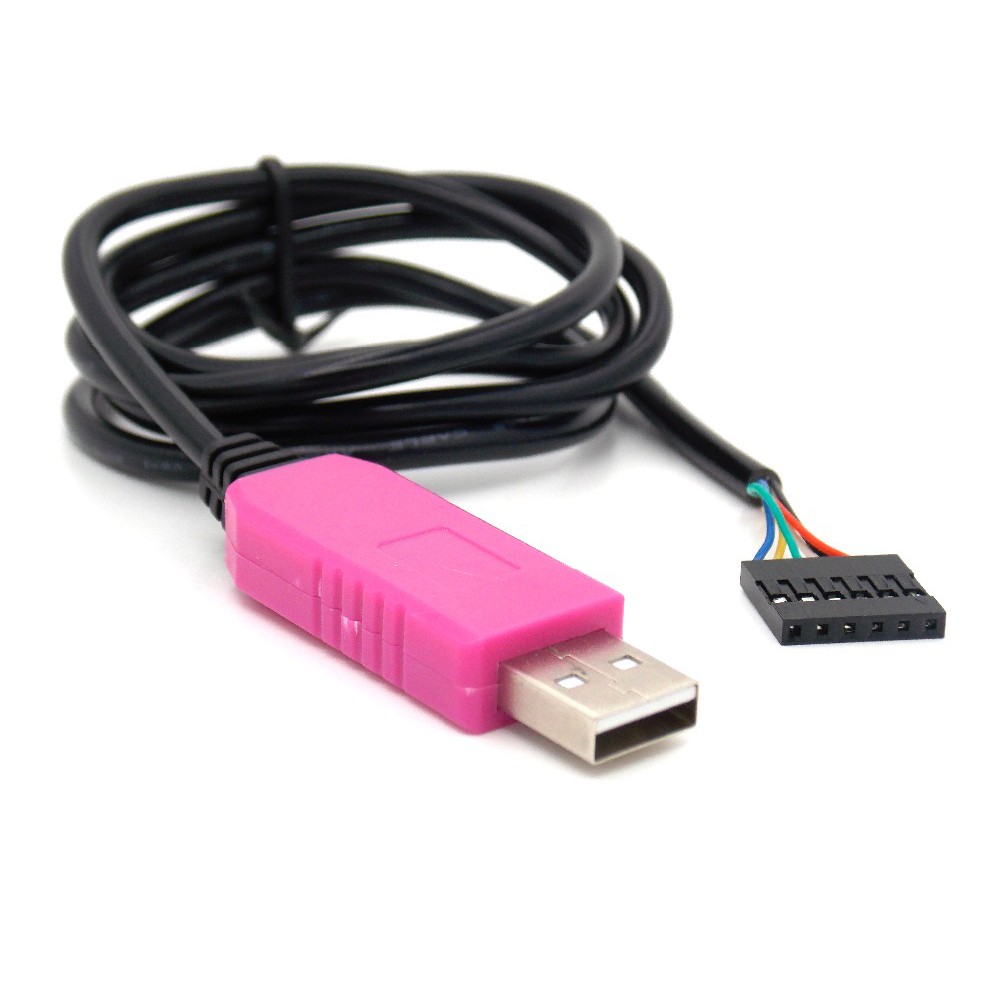

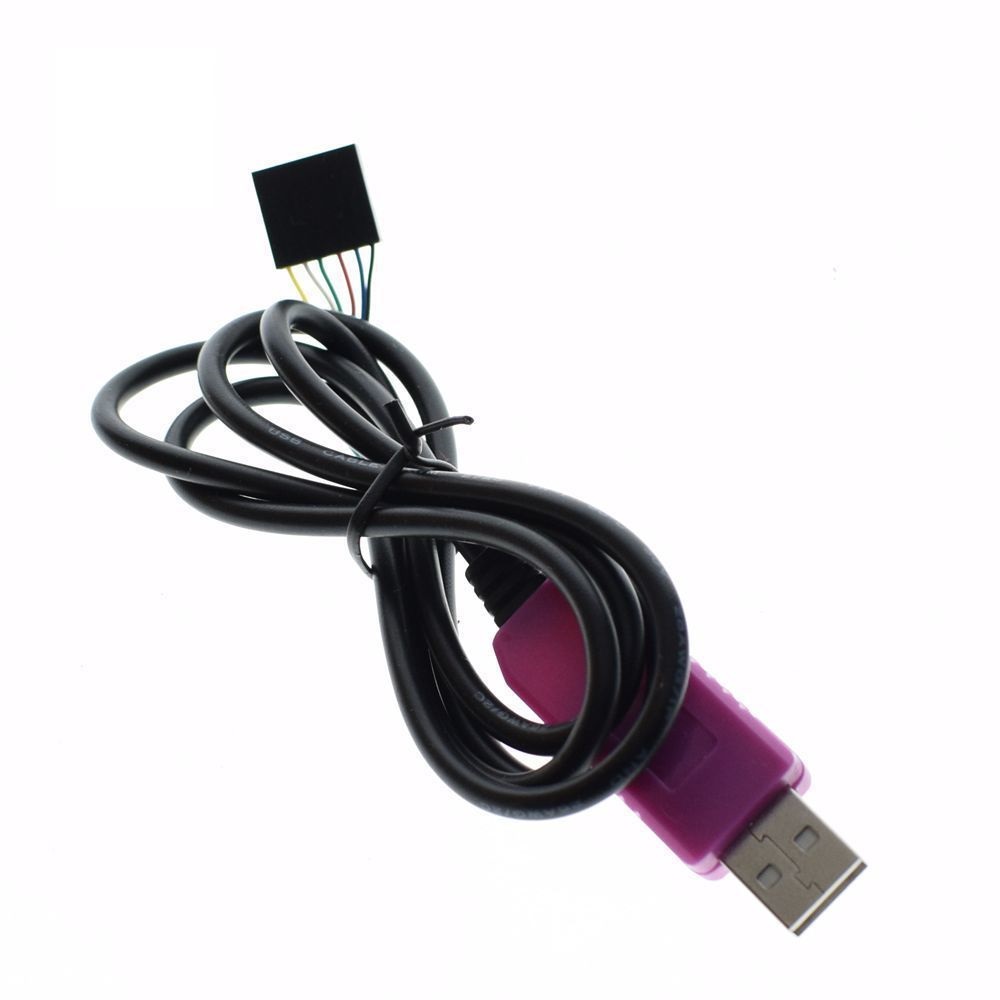

6Pin PL2303HXD USB to TTL/RS232.

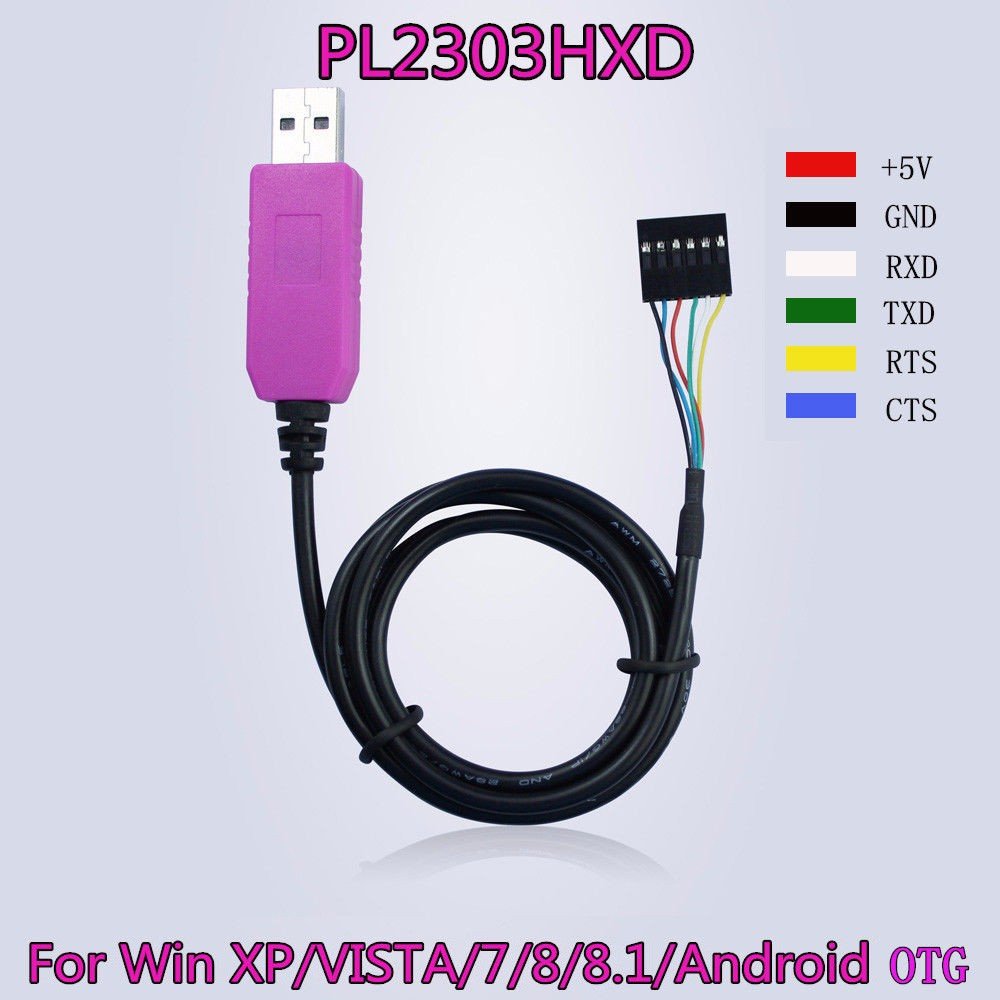

This is a newly designed product, using the Taiwan prolific production company PL2303HXD chips,PL2303HXD perfectly compatible with win XP/VISTA/7/8/8.1 / for Android OTG The PL-2303HXD is a low cost and high performance USB-to-Serial Bridge Controller. The PL-2303HXD provides a convenient solution for connecting an RS-232 full-duplex asynchronous serial device to any Universal Serial Bus (USB) capable host. The PL-2303HXD highly compatible drivers could simulate the traditional COM port on most operating systems allowing the existing applications based on COM port to easily migrate and be made USB ready. Full compliance with the USB Specification v1.1 Supports RS-232 serial interface with Programmable baud rate from 75 bps to 12 Mbps Supports RS422/RS485 interface Extensive flow control mechanism like adjustable high/low watermark level, automatic hardware or software flow control, and inbound data buffer overflow detection This product is designed for laboratory, product testing, low-cost MCU communications and other applications, there are four lead, Red +5 V Black GND White RXD Green TXD Yellow RTS Blue CTS Product Applications: Single-chip upgrade solution for Legacy RS232 devices to USB interface USB to RS232 converters/cables/dongles Healthcare/Medical USB Interface Data Transfer Cable Personal Infotainment/Media Player Docking USB Interface Cellular/PDA USB Interface Data Transfer Cable Serial-over-IP Wireless Solution USB Barcode/Smart Card Readers GPS/Navigation USB Interface Point-of-Sale (POS) Terminals/Printers PC Docking Station/Port Replicators Industrial/Instrumentation/Automation Control USB Interface USB Modem/Wireless/Zigbee USB Interface

Package Included:

5 x 6Pin PL2303HXD USB to RS232 TTLCable
