Sale!

FNIRSI 1014D Oscilloscope

ل.س1,575,000

2 in 1 Digital Oscilloscope

SKU: GRO517 Category:

Description

Professional Designed : Fnirsi oscilloscope has a real-time sampling rate of up to 1GSA/S and an analog bandwidth of 100MHZ * 2. Fnirsi oscilloscope has a complete trigger function (single/normal/automatic), it can be used freely for both periodic analog signals and aperiodic digital signals.
Function Signal Generator : Built-in DDS function signal generator and industry’s original chopping output (@2.5VPP), all signal frequency steps are 1HZ, support 14 kinds of standard function signals and a customizable chopping signal, chopping the output divice intercepts part or the whole part of the complex signals measured by the oscilloscope as the output signal of the signal generator, which can store up to 1000 customized chopping signals.
Easily Measuring : Cursor measurement function, when manually reading amplitude-frequency parameters, you do not need to read the background scale unit and quantity, and you can directly get the peak-to-peak value and frequency without conversion.

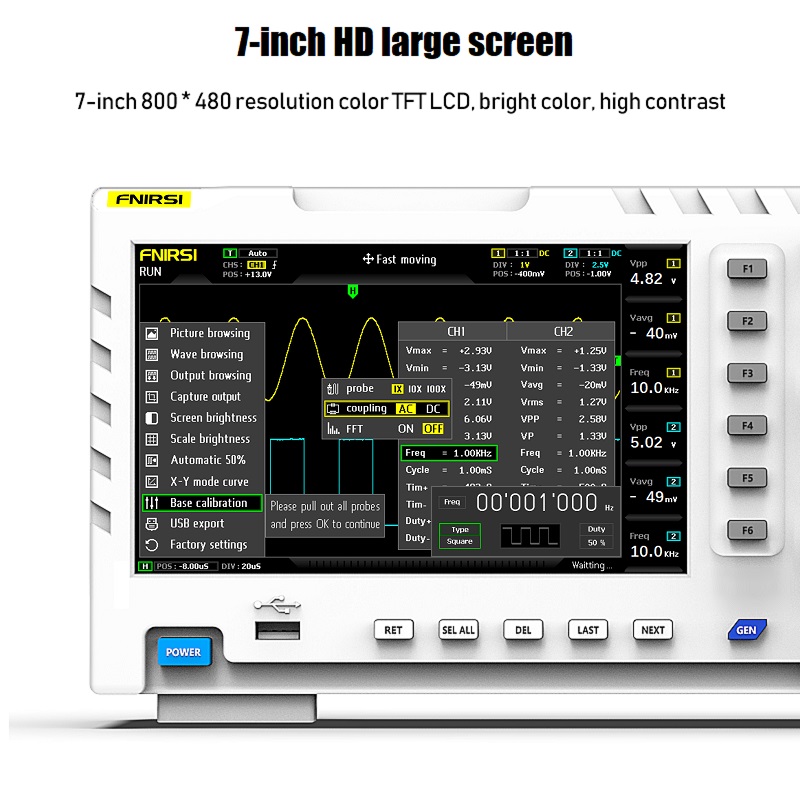

Easy to Observe : Equipped with high-efficiency one-button AUTO, adaptive 25%, 50%, 75% trigger, can display the measured waveform without cumbersome adjustment; the display is equipped with a 7-inch 800*480 resolution high-definition LCD screen.
Lissajous Graphic Display & FFT Viewing: Lissajous graphic display function can be used to compare the amplitude, frequency and phase of the two sets of signals. FFT viewing function can roughly estimation of the harmonic content of the signal.
